The Gruempen Viaduct
The Gruempen Viaduct (Photo: Luftbild Nürnberg, Hajo Dietz)
Facts and figures
270 m| Structure type: | prestressed concrete box girder, continuous girder chain, arch bridge with elevated track |
| Bridge length: | 1,104 m |
| Width: | 14.10 m |
| Span lengths: | 43 – 6x44 – 9x30 – 11x44 – 43 m |
| Arch span: | 270 m |
| Construction depth: | 3.60 m |
| Construction height: | 4.525 m |
This viaduct crosses the Grümpen Valley between Grümpen and Selsendorf at a height of about 70 metres. The valley has gently rising sides and a level floor about 250 metres wide.

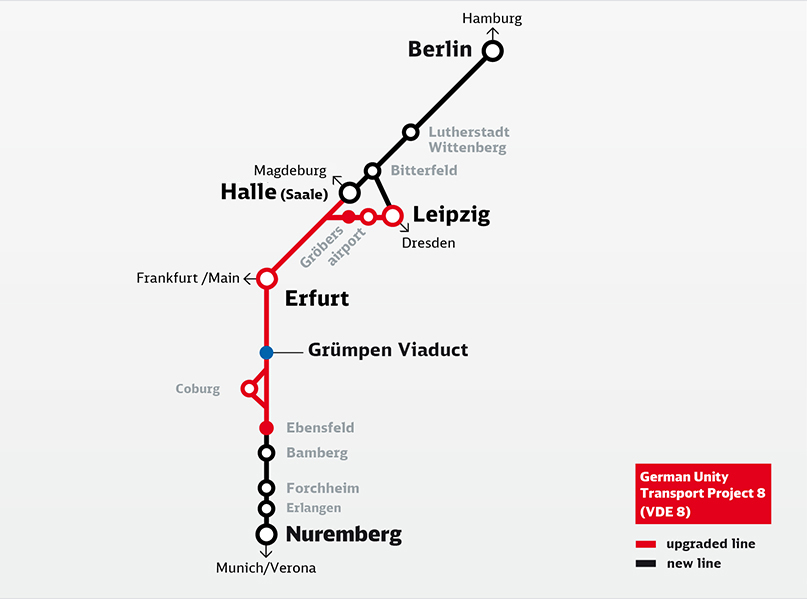

(Graphic: DB AG)
On the south side, the River Grümpen, which has wooded banks, takes its natural course, and on the north side there is the K34 district road. It is joined by a smaller side valley to the north. The B89 main road and the Eisfeld-Sonneberg railway line run along the north side of this side valley from east to west. In this section, the new line is laid out with a radius of 6,640 metres with adjoining transition curves. The line rises with a gradient of 1.25% from south to north along the Grümpen Viaduct.
